ESP32 – Dual ADC + Serial Oscilloscope (Telemetry Viewer, ESP-IDF + VS Code)

#include
#include
#include
#include
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"

#include "esp_err.h"
#include "esp_log.h"
#include "esp_timer.h"

#include "esp_adc/adc_oneshot.h"
#include "esp_rom_sys.h"

// ======================== Logging / diagnostics ========================
static const char *gTag = "ADC_MEAS";   // Log tag for ADC measurement output

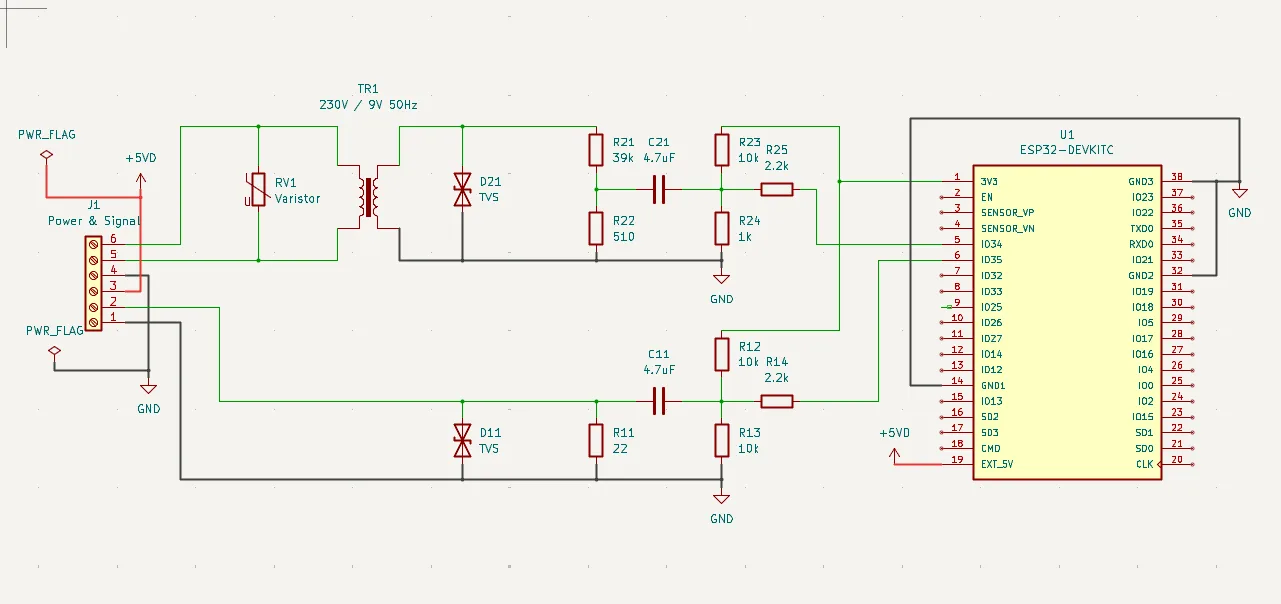

// ======================== Hardware mapping (ADC channels / GPIO) ========================
// CH_A on ADC1
#define iChA_AdcChannel ADC_CHANNEL_6 // GPIO34 = ADC1_CH6
// CH_B on ADC1
#define iChB_AdcChannel ADC_CHANNEL_7 // GPIO35 = ADC1_CH7


// ======================== Signal & acquisition configuration ========================
// Expected input signal characteristics (used to size capture window)
#define SIGNAL_HZ                   50
#define PERIODS_TO_CAPTURE          3
#define CAPTURE_MS                  (1000 * PERIODS_TO_CAPTURE / SIGNAL_HZ)   // 60 ms

// Sampling configuration
#define PER_CH_SAMPLE_RATE_HZ       10000
#define SAMPLES_PER_CH              ((PER_CH_SAMPLE_RATE_HZ * CAPTURE_MS) / 1000) // 600

// ======================== ADC scaling / auto-ranging thresholds ========================
#define ADC_FULL_SCALE_COUNTS       4095    // Max ADC code for configured resolution

// ======================== Data structures (raw statistics bookkeeping) ========================
// Raw ADC statistics for one channel at one attenuation
typedef struct {
    int  iMin;
    int  iMax;
    int  iZeroCount;
    int  iFullScaleCount;
    bool bValid;
} sRawStats_t;

// Raw ADC statistics for both channels at one attenuation
typedef struct {
    sRawStats_t sChA;
    sRawStats_t sChB;
} sRawStatsPerAtten_t;

// ======================== Runtime state (collected stats, driver handles) ========================
// Stats per attenuation level (index corresponds to attenuation levels you test)
static sRawStatsPerAtten_t gsRawStatsByAtten[4] = { 0 };

// ADC oneshot driver handles (hardware resources)
static adc_oneshot_unit_handle_t gAdcHandleUnit1 = NULL;
//static adc_oneshot_unit_handle_t gAdcHandleUnit2 = NULL;

// ======================== Filtering configuration ========================
#define FILTER_TAP_COUNT            5


static void Clear_Raw_Stats_By_Atten(void)
{
	// Clears the stored raw statistics collected during the auto-ranging process
	// Ensures no stale stats from previous frames appear in the next stats printout
	// Keeps only attenuation levels actually tried in the current auto-range cycle

	// Reset all stored entries
	for (int iIndex = 0; iIndex < 4; iIndex++) {
		gsRawStatsByAtten[iIndex].sChA.bValid = false;
		gsRawStatsByAtten[iIndex].sChB.bValid = false;
		gsRawStatsByAtten[iIndex].sChA.iMin = 0;
		gsRawStatsByAtten[iIndex].sChA.iMax = 0;
		gsRawStatsByAtten[iIndex].sChA.iZeroCount = 0;
		gsRawStatsByAtten[iIndex].sChA.iFullScaleCount = 0;
		gsRawStatsByAtten[iIndex].sChB.iMin = 0;
		gsRawStatsByAtten[iIndex].sChB.iMax = 0;
		gsRawStatsByAtten[iIndex].sChB.iZeroCount = 0;
		gsRawStatsByAtten[iIndex].sChB.iFullScaleCount = 0;
	}
}


static void Record_Raw_Stats_For_Atten(adc_atten_t eAttenChA, adc_atten_t eAttenChB,
                                   int iMinRawA, int iMaxRawA, int iZeroCountA, int iFullScaleHitsA,
                                   int iMinRawB, int iMaxRawB, int iZeroCountB, int iFullScaleHitsB)
{
	// Records the latest raw min/max and saturation counters for attenuation levels tried
	// Updates only the attenuation entries that were actually used on this capture attempt
	// Allows later printing of all tried levels to assess whether the chosen attenuation is optimal

	// Store channel A stats under its attenuation index
	int iAttenIndexA = (int)eAttenChA;
	if (iAttenIndexA >= 0 && iAttenIndexA < 4) {
		gsRawStatsByAtten[iAttenIndexA].sChA.iMin = iMinRawA;
		gsRawStatsByAtten[iAttenIndexA].sChA.iMax = iMaxRawA;
		gsRawStatsByAtten[iAttenIndexA].sChA.iZeroCount = iZeroCountA;
		gsRawStatsByAtten[iAttenIndexA].sChA.iFullScaleCount = iFullScaleHitsA;
		gsRawStatsByAtten[iAttenIndexA].sChA.bValid = true;
	}

	// Store channel B stats under its attenuation index
	int iAttenIndexB = (int)eAttenChB;
	if (iAttenIndexB >= 0 && iAttenIndexB < 4) {
		gsRawStatsByAtten[iAttenIndexB].sChB.iMin = iMinRawB;
		gsRawStatsByAtten[iAttenIndexB].sChB.iMax = iMaxRawB;
		gsRawStatsByAtten[iAttenIndexB].sChB.iZeroCount = iZeroCountB;
		gsRawStatsByAtten[iAttenIndexB].sChB.iFullScaleCount = iFullScaleHitsB;
		gsRawStatsByAtten[iAttenIndexB].sChB.bValid = true;
	}
}


static void Adc_Deinitialize(void)
{
    // Stops all ADC activity and releases ADC unit handle
    // Leaves the system in a clean state for the next cycle

    // Deinit ADC1 oneshot unit
    if (gAdcHandleUnit1 != NULL) {
        (void)adc_oneshot_del_unit(gAdcHandleUnit1);
        gAdcHandleUnit1 = NULL;
    }
}


static void Adc_Initialize(adc_atten_t eAttenChA, adc_atten_t eAttenChB)
{
    // Creates an ADC1 one-shot unit and configures two channels
    // Applies independent attenuation per channel on ADC1
    // Leaves units ready for timed sampling in the capture loop

    // Create ADC1 unit
    adc_oneshot_unit_init_cfg_t sUnit1Cfg = {
        .unit_id = ADC_UNIT_1,
        .ulp_mode = ADC_ULP_MODE_DISABLE,
    };
    ESP_ERROR_CHECK(adc_oneshot_new_unit(&sUnit1Cfg, &gAdcHandleUnit1));

    // Configure CH_A on ADC1
    adc_oneshot_chan_cfg_t sChanCfgA = {
        .atten = eAttenChA,
        .bitwidth = ADC_BITWIDTH_12,
    };
    ESP_ERROR_CHECK(adc_oneshot_config_channel(gAdcHandleUnit1, iChA_AdcChannel, &sChanCfgA));

    // Configure CH_B on ADC1
    adc_oneshot_chan_cfg_t sChanCfgB = {
        .atten = eAttenChB,
        .bitwidth = ADC_BITWIDTH_12,
    };
    ESP_ERROR_CHECK(adc_oneshot_config_channel(gAdcHandleUnit1, iChB_AdcChannel, &sChanCfgB));
}


static void Adc_Reconfigure(adc_atten_t eAttenAdc1, adc_atten_t eAttenAdc2)
{
	// Reinitializes ADC continuous mode with new attenuation settings
	// Fully deinitializes first to avoid invalid state during config changes
	// Leaves ADC running with the new configuration

	// Restart ADC engine with new settings
	Adc_Deinitialize();
	Adc_Initialize(eAttenAdc1, eAttenAdc2);
}


static void Dc_Remove(const uint16_t *puInput, int32_t *piOutput, int iCount)
{
	// Removes DC component from a channel by subtracting the mean
	// Produces signed, zero-centered samples for filtering
	// Keeps scaling in ADC counts for deterministic thresholds

	// Compute mean value
	int64_t liSum = 0;
	for (int iIndex = 0; iIndex < iCount; iIndex++) {
		liSum += puInput[iIndex];
	}
	float fMean = (float)liSum / (float)iCount;

	// Subtract mean from every sample
	for (int iIndex = 0; iIndex < iCount; iIndex++) {
		piOutput[iIndex] = (int32_t)((float)puInput[iIndex] - fMean);
	}
}


static void Moving_Average_Filter(const uint16_t *puInput, uint16_t *puOutput, int iCount)
{
	// Applies a small moving-average filter for basic noise reduction
	// Preserves sample count by clamping indices at the edges
	// Keeps output in ADC counts for thresholding and printing

	// Set half window for symmetric averaging
    int iTapHalf = FILTER_TAP_COUNT / 2;

	// Filter each sample with a clamped moving window
    for (int iIndex = 0; iIndex < iCount; iIndex++) {
        uint32_t uiAccumulator = 0;
        for (int iTap = -iTapHalf; iTap <= iTapHalf; iTap++) {
            int iSource = iIndex + iTap;
            if (iSource < 0) iSource = 0;
            if (iSource >= iCount) iSource = iCount - 1;
            uiAccumulator += puInput[iSource];
        }
        puOutput[iIndex] = (uint16_t)(uiAccumulator / FILTER_TAP_COUNT);
    }
}


static float Adc_Counts_To_Volts(adc_atten_t eAttenChannel, int32_t iCounts)
{
    // Converts signed ADC counts to volts using the channel attenuation selection
    // Uses a simple full-scale approximation per ESP32 attenuation option
    // Provides AC-relative volts when used on DC-removed buffers

    // Select full-scale voltage based on attenuation setting
    float fFullScaleVolts = 1.1f;
    switch (eAttenChannel) {
        case ADC_ATTEN_DB_0:
            fFullScaleVolts = 1.1f;
            break;
        case ADC_ATTEN_DB_2_5:
            fFullScaleVolts = 1.5f;
            break;
        case ADC_ATTEN_DB_6:
            fFullScaleVolts = 2.2f;
            break;
        case ADC_ATTEN_DB_12:
        default:
            fFullScaleVolts = 3.9f;
            break;
    }

    // Convert ADC counts to volts using the selected full-scale range
    float fVolts = ((float)iCounts * fFullScaleVolts) / (float)ADC_FULL_SCALE_COUNTS;
    return fVolts;
}


static bool Capture_Paired_Samples(uint16_t *puChA, uint16_t *puChB)
{
    // Compute sample interval in microseconds
    const int64_t liSamplePeriodUs = (1000000LL / (int64_t)PER_CH_SAMPLE_RATE_HZ);

    int iSampleIdx = 0;
    int64_t liNextSampleTimeUs = esp_timer_get_time();

    while (iSampleIdx < SAMPLES_PER_CH) {

        // Wait until the next scheduled sample time
        int64_t liNowUs = esp_timer_get_time();
        if (liNowUs < liNextSampleTimeUs) {
            esp_rom_delay_us((uint32_t)(liNextSampleTimeUs - liNowUs));
        }

        // Read CH_A from ADC1
        int iRawA = 0;
        esp_err_t eErrA = adc_oneshot_read(gAdcHandleUnit1, iChA_AdcChannel, &iRawA);
        if (eErrA != ESP_OK) {
            ESP_LOGE(gTag, "adc_oneshot_read CH_A, ADC1, failed: %s", esp_err_to_name(eErrA));
            return false;
        }

        // Read CH_B from ADC1
        int iRawB = 0;
        esp_err_t eErrB = adc_oneshot_read(gAdcHandleUnit1, iChB_AdcChannel, &iRawB);
        if (eErrB != ESP_OK) {
            ESP_LOGE(gTag, "adc_oneshot_read CH_B, ADC1, failed: %s", esp_err_to_name(eErrB));
            return false;
        }

        // Store paired samples
        puChA[iSampleIdx] = (uint16_t)iRawA;
        puChB[iSampleIdx] = (uint16_t)iRawB;

        // Advance to the next index and time slot
        iSampleIdx++;
        liNextSampleTimeUs += liSamplePeriodUs;
    }

    return true;
}


static adc_atten_t Step_Attenuation_More_Sensitive(adc_atten_t eCurrent)
{
	// Steps attenuation one level toward more sensitivity
	// Uses the ESP32 attenuation ordering from lowest range to highest range
	// Returns current value if already at the most sensitive setting

	// Define ordered attenuation levels
	const adc_atten_t aeLevels[] = { ADC_ATTEN_DB_0, ADC_ATTEN_DB_2_5, ADC_ATTEN_DB_6, ADC_ATTEN_DB_12 };
	const int iLevelCount = (int)(sizeof(aeLevels) / sizeof(aeLevels[0]));

	// Find current index and step down if possible
	for (int iIndex = 0; iIndex < iLevelCount; iIndex++) {
		if (aeLevels[iIndex] == eCurrent) {
			if (iIndex > 0) {
				return aeLevels[iIndex - 1];
			}
			return eCurrent;
		}
	}

	return eCurrent;
}


static void Auto_Range_Attenuations(adc_atten_t *peAttenAdc1, adc_atten_t *peAttenAdc2)
{
    // Auto-range each channel independently to the most sensitive attenuation that
    // does *not* saturate.
    //
    // Behavior:
    //  - Start both channels at least sensitive (12 dB).
    //  - Keep increasing sensitivity (12->6->2.5->0) per channel until that
    //    channel saturates, then step back one level for that channel.
    //  - Do not stop optimizing one channel just because the other channel is
    //    finished; finished channels stay fixed while the other continues.
    //  - Record stats for every attenuation actually tried, per channel, and dump
    //    them all together at the end (one line per channel per attenuation).

    // Start fresh each time so the dump reflects *this* optimization run.
    Clear_Raw_Stats_By_Atten();

    adc_atten_t eAttenA = ADC_ATTEN_DB_12;
    adc_atten_t eAttenB = ADC_ATTEN_DB_12;

    adc_atten_t ePrevA = eAttenA;
    adc_atten_t ePrevB = eAttenB;

    bool bDoneA = false;
    bool bDoneB = false;


    // Guard against infinite loops (4 attenuation levels + a little slack).
    for (int iAttempt = 0; iAttempt < 12 && !(bDoneA && bDoneB); iAttempt++) {

        // Apply current attenuation settings
        Adc_Reconfigure(eAttenA, eAttenB);

        // Capture one analysis frame
        static uint16_t auRawChA[SAMPLES_PER_CH];
        static uint16_t auRawChB[SAMPLES_PER_CH];
        if (!Capture_Paired_Samples(auRawChA, auRawChB)) {
            break;
        }
        static uint16_t auFiltChA[SAMPLES_PER_CH];
        static uint16_t auFiltChB[SAMPLES_PER_CH];

        Moving_Average_Filter(auRawChA, auFiltChA, SAMPLES_PER_CH);
        Moving_Average_Filter(auRawChB, auFiltChB, SAMPLES_PER_CH);

        // Compute raw stats per channel for saturation detection
        int iMinRawA = INT_MAX;
        int iMaxRawA = INT_MIN;
        int iMinRawB = INT_MAX;
        int iMaxRawB = INT_MIN;
        int iFullScaleHitsA = 0;
        int iFullScaleHitsB = 0;
        int iZeroCountA = 0;
        int iZeroCountB = 0;

        for (int iIndex = 0; iIndex < SAMPLES_PER_CH; iIndex++) {
            int iValueA = (int)auFiltChA[iIndex];
            int iValueB = (int)auFiltChB[iIndex];

            if (iValueA < iMinRawA) iMinRawA = iValueA;
            if (iValueA > iMaxRawA) iMaxRawA = iValueA;
            if (iValueB < iMinRawB) iMinRawB = iValueB;
            if (iValueB > iMaxRawB) iMaxRawB = iValueB;

            if (iValueA >= ADC_FULL_SCALE_COUNTS) iFullScaleHitsA++;
            if (iValueB >= ADC_FULL_SCALE_COUNTS) iFullScaleHitsB++;
            if (iValueA == 0) iZeroCountA++;
            if (iValueB == 0) iZeroCountB++;
        }

        // Record stats for the attenuation levels actually used on this attempt
        Record_Raw_Stats_For_Atten(eAttenA, eAttenB,
                               iMinRawA, iMaxRawA, iZeroCountA, iFullScaleHitsA,
                               iMinRawB, iMaxRawB, iZeroCountB, iFullScaleHitsB);

        bool bSaturatedA = (iFullScaleHitsA > 0);
        bool bSaturatedB = (iFullScaleHitsB > 0);

        // Channel A: keep stepping more sensitive until saturation, then back off
        if (!bDoneA) {
            if (bSaturatedA) {
                eAttenA = ePrevA;
                bDoneA = true;
            } else if (eAttenA == ADC_ATTEN_DB_0) {
                bDoneA = true;
            } else {
                ePrevA = eAttenA;
                eAttenA = Step_Attenuation_More_Sensitive(eAttenA);
            }
        }

        // Channel B: keep stepping more sensitive until saturation, then back off
        if (!bDoneB) {
            if (bSaturatedB) {
                eAttenB = ePrevB;
                bDoneB = true;
            } else if (eAttenB == ADC_ATTEN_DB_0) {
                bDoneB = true;
            } else {
                ePrevB = eAttenB;
                eAttenB = Step_Attenuation_More_Sensitive(eAttenB);
            }
        }
    }

    *peAttenAdc1 = eAttenA;
    *peAttenAdc2 = eAttenB;
}


void app_main(void)
{
    // Continuously samples two ADC channels and prints their filtered values
    // Applies auto-ranging, DC removal and a moving average filter per frame
    // Prints CSV rows containing only channel A and channel B values

    while (1) {

        // Start ADC units for the measurement window
        Adc_Initialize(ADC_ATTEN_DB_12, ADC_ATTEN_DB_12);

        // Continuously capture and print frames while ADC is enabled
        while (1) {

            // Auto-range per channel before printing any samples
            adc_atten_t eChosenAttenChA = ADC_ATTEN_DB_12;
            adc_atten_t eChosenAttenChB = ADC_ATTEN_DB_12;
            Auto_Range_Attenuations(&eChosenAttenChA, &eChosenAttenChB);

			//printf("ATTEN,%d,%d\n", (int)eChosenAttenChA, (int)eChosenAttenChB);

            // Re-init ADC units with chosen attenuations
            Adc_Reconfigure(eChosenAttenChA, eChosenAttenChB);

            // Capture one output frame
            static uint16_t auRawChA[SAMPLES_PER_CH];
            static uint16_t auRawChB[SAMPLES_PER_CH];
            if (!Capture_Paired_Samples(auRawChA, auRawChB)) {
                break;
            }

            static uint16_t auFiltChA[SAMPLES_PER_CH];
            static uint16_t auFiltChB[SAMPLES_PER_CH];
            Moving_Average_Filter(auRawChA, auFiltChA, SAMPLES_PER_CH);
            Moving_Average_Filter(auRawChB, auFiltChB, SAMPLES_PER_CH);

            // Remove DC component per channel
            static int32_t aiChA_Ac[SAMPLES_PER_CH];
            static int32_t aiChB_Ac[SAMPLES_PER_CH];
            Dc_Remove(auFiltChA, aiChA_Ac, SAMPLES_PER_CH);
            Dc_Remove(auFiltChB, aiChB_Ac, SAMPLES_PER_CH);

            // Print CSV rows: chA, chB
            for (int iIdx = 0; iIdx < SAMPLES_PER_CH; iIdx++) {
				float fVoltChA = Adc_Counts_To_Volts(eChosenAttenChA, aiChA_Ac[iIdx]);
				float fVoltChB = Adc_Counts_To_Volts(eChosenAttenChB, aiChB_Ac[iIdx]);
				printf("%.6f,%.6f\n", fVoltChA, fVoltChB);
            }

            // Short pause for PC plotter responsiveness
            vTaskDelay(pdMS_TO_TICKS(50));
        }

        // Stop ADC units if the capture loop ever exits unexpectedly
        Adc_Deinitialize();
    }
}
